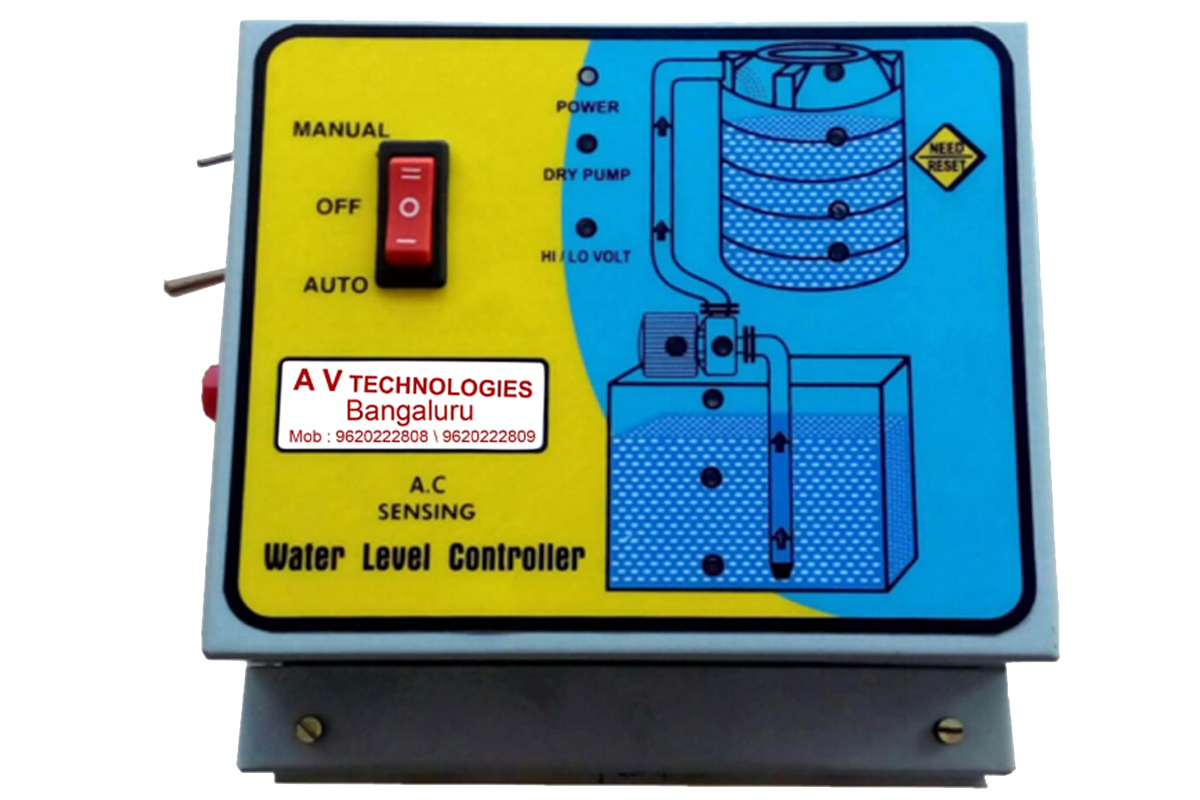

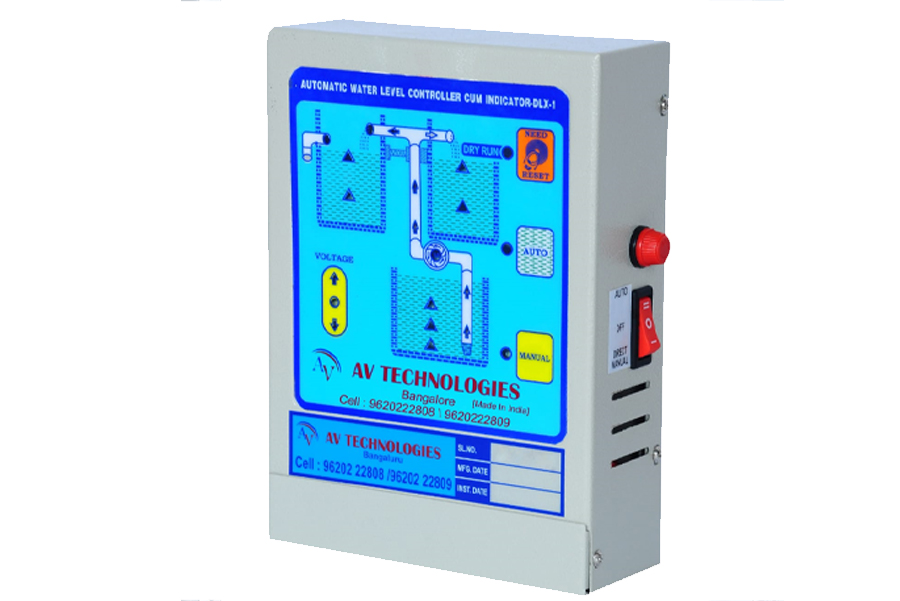

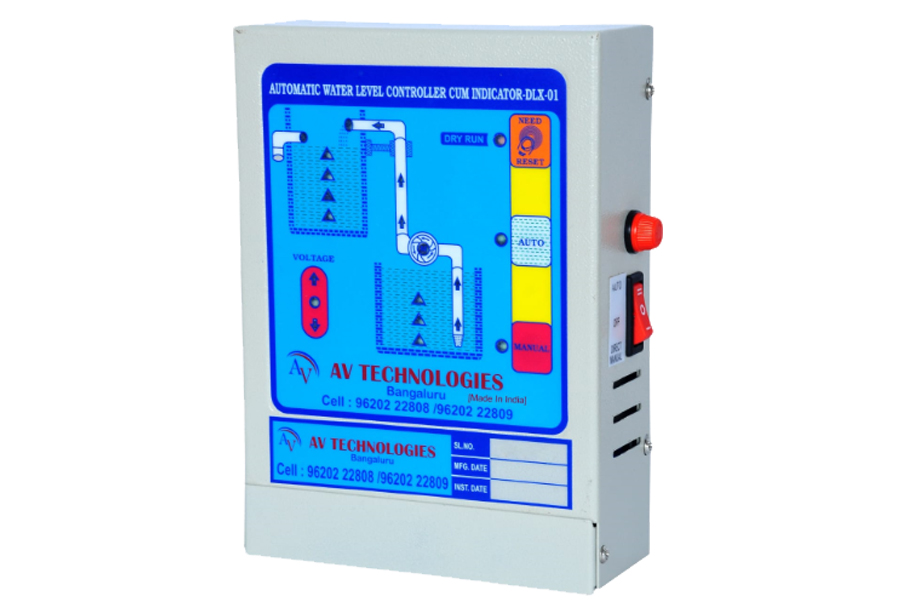

Automatic Water Level Controller/Indicator
Enquire Now +919620222808 +919620222809
Automatic water level control Systems . Incorporated in the year 2019, We provide Custom made solutions to all your liquid level managements needs. It is our basic policy to offer systems that are user-friendly, simple, operationally dependable, cost-effective and above all maintenance free We are a small firm with high aims and remarkable achievements electronics and electrical gadgets of daily use.
System supply voltage : 160V - 250 VAC 50 Hz. : 160V - 250 VAC 50 Hz.
Sensing Voltage : 12 V AC
Output Contact : 30 Amps at 230V AC (Potential Free)
Size: 170 mmx 150 mmx6Omm(LxBxH)
Starting dry run trip delay : 120 seconds
Running dry run trip delay : 10 seconds
Power on delay : 30 seconds
. Enhance the motor performance and life.
. Pump is economically run, saving in Electricity Bill.
. Longer sensor life, No maintenance, Easy installation.
. Models suit for single Phase /Three phase pumps.
. Custom built models for Single phase Submersible Pumps.
. Custom built models for Multi Tank Arrangements.
. Custom built models interface with Timer Systems
Input Voltage : 230/440 Volts AC 50 Hz.
Power Consumption: 2.5 Watts (approx.)
Relay Contact Rating : One N/O potential free contact rated at 12 Amps at 230 Volts.
Dry Run Time Delay 150 Sec. in case of Priming Fault
Starting dry run trip delay : 120 seconds
Running dry run trip delay : 150 Sec. in case of Priming Fault
Working Voltage : Motor Trips if Voltage
>250 or <160 AC in case of Single Phase
>450 or <350 AC in case of Three Phase.
Power on Delay : 45 Seconds even in Voltage Fluctuations.
Dimensions (mm) :230 x 150 x 63 (LxB xH).
Over all Panel Mounting
1. Micro Controller Based Programmable Water Level Controller.

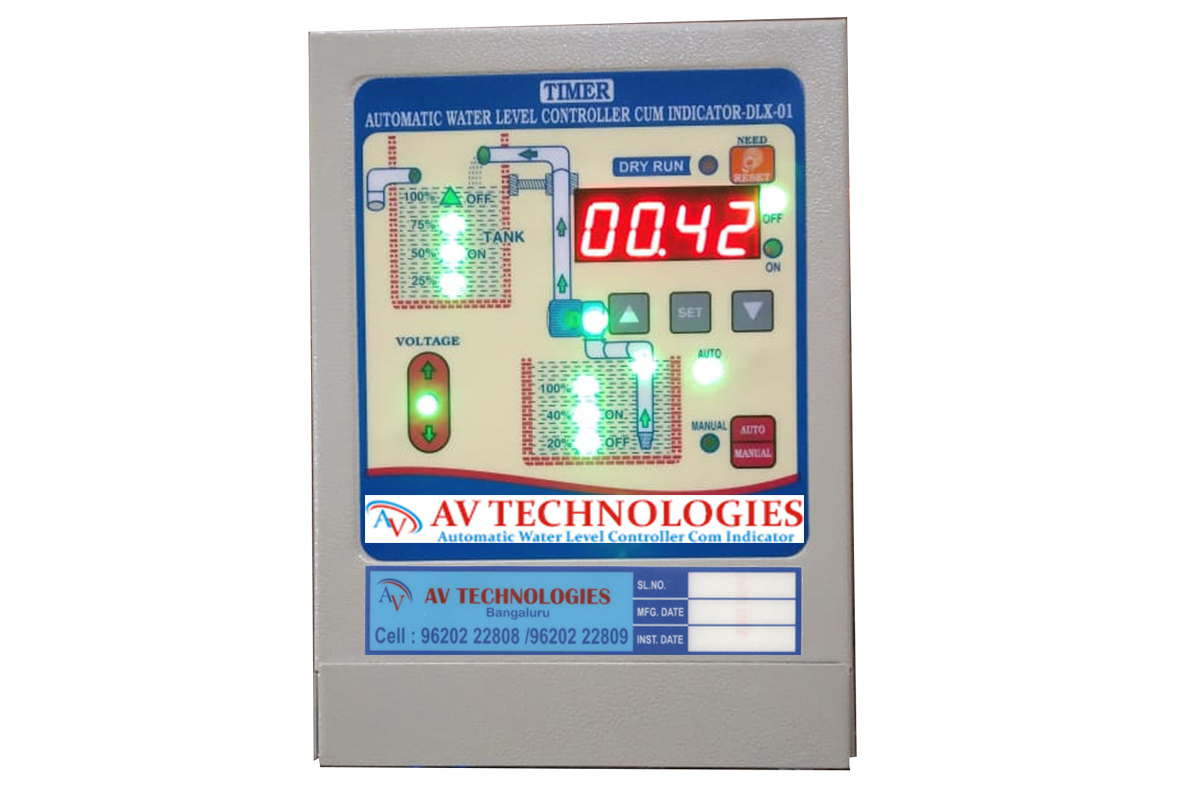

2. Micro Controller Based Timer with Digital Display.

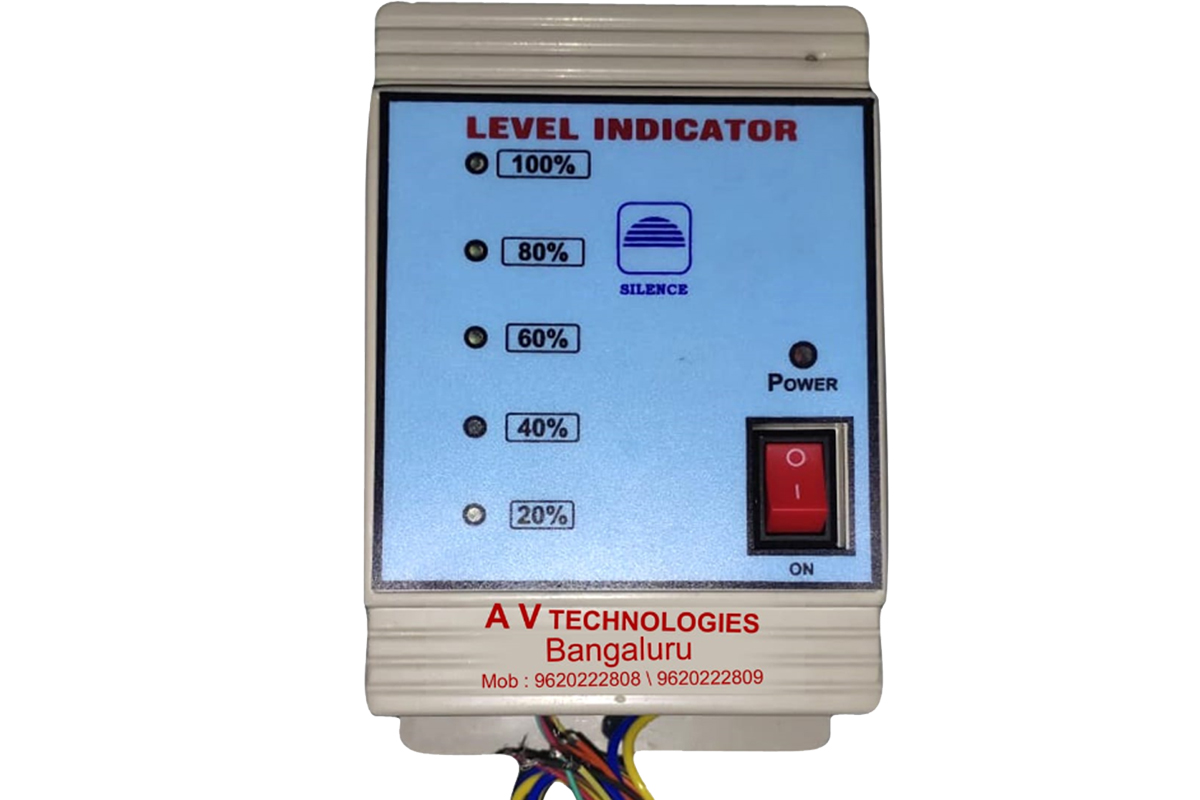

3. Digital Level Indicator.
4. LCD Model.

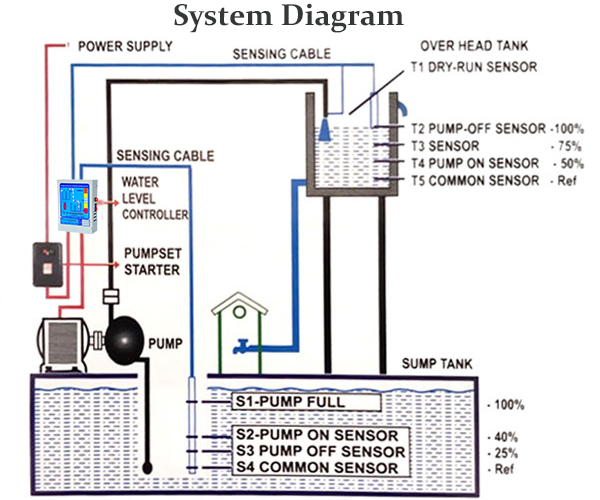

Pump switches ON/OFF Automatically as per the signals transmitted from sensors in SUMP and TANK. FUSE (LOAD) protects the pump from Overloading and Short Circuits.
Pump switches OFF. System moniters the water level in Sump and Over Head Tank.
Pump switches ON Irrespective of water level in SUMP or TANK. This bypass the FUSE (LOAD). Select OFF mode to switch OFF the pump.
Need (Trigger) / Reset. To switch ON the pump in AUTO MODE To RESTART the pump after rectifying dry running fault.
To provide solutions in liquid level measurement and control and sincere emphasis professionalism, quality, value. Which will maximize customer satisfaction.
